Our systems
Scan a customer, build the model with AI, print and finish the figurine. Use the foldable booth for full-body figurines and the desktop device for faces. Run one or both.
System 01 · Full body
Ten aluminum alloy columns with grid lights form a sturdy 60-camera matrix that folds down for transport.
| Cameras | 60 × 12 MP |
| Full-body capture | 0.15 seconds |
| Shutter life | 100,000 fault-free triggers |
| Structure | 10 aerospace-grade aluminum alloy columns with grid lights |
| Dimensions | 2.2 m high × 2.5 m diameter |
| Floor area | 5 m² |
| Weight | 50 kg |
| Setup and teardown | 15 minutes, one person |
| Transport | Packs into one flight case |
System 02 · Desktop
A curved arm with seven 12 MP cameras and an adjustable ring LED. It weighs 1 kg, sits on a table and works with or without an internet connection.
| Cameras | 7 × 12 MP |
| Images per capture | 7 |
| Capture time | 1 second, stable image saving |
| Lighting | 1 adjustable ring LED |
| Frame | Plastic |
| Dimensions | 0.5 m high |
| Floor area | ≤ 0.5 m² |
| Weight | 1 kg |
| Output format | PNG |
| Power | 360 W, 220 V |
| Operating temperature | -10 °C to 60 °C |
| Connectivity | Works online or offline |
| Software | Lingmo™ |
Compared
| Traditional matrix device | Tiansun foldable booth | |
|---|---|---|
| Space | 10 m², fixed studio | 5 m² |
| Assembly | 4+ hours, complicated | 15 minutes |
| Crew | Multiple people | One person |

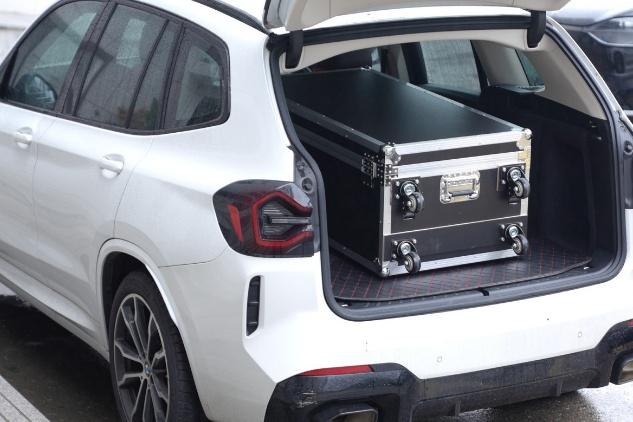

| Transport | Large truck | One flight case, fits a car trunk |
| Capture | - | 0.15 seconds, 100,000 fault-free triggers |
| Where it works | Only in the store | Anywhere |

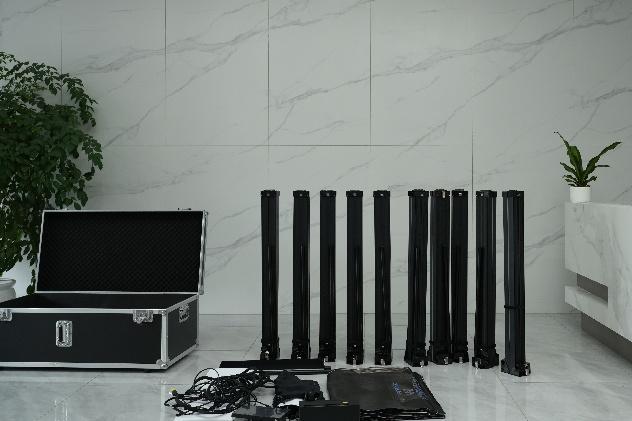

Portability

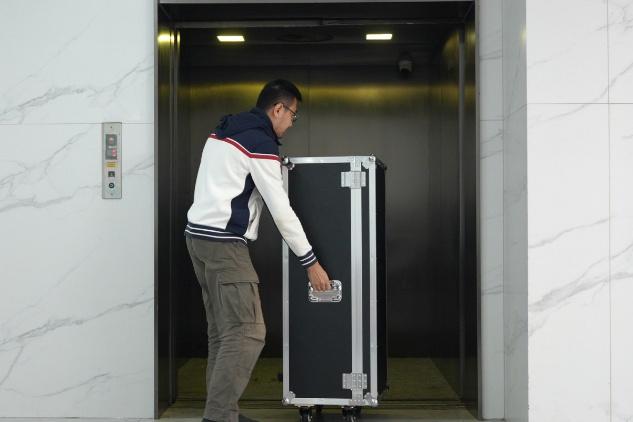

At 50 kg, the whole booth travels in one case. One person can load it, carry it and set it up in 15 minutes.
AI software
Tiansun's own software turns scan data into a print-ready model faster than the industry average.
| Capability | Industry average | MOAG Lingmo™ |
|---|---|---|
| 3D reconstruction | 15 minutes | 5 minutes |
| Cloud visualization | 30 minutes | 10 minutes |
| Model refinement | - | 50% less time and cost |
